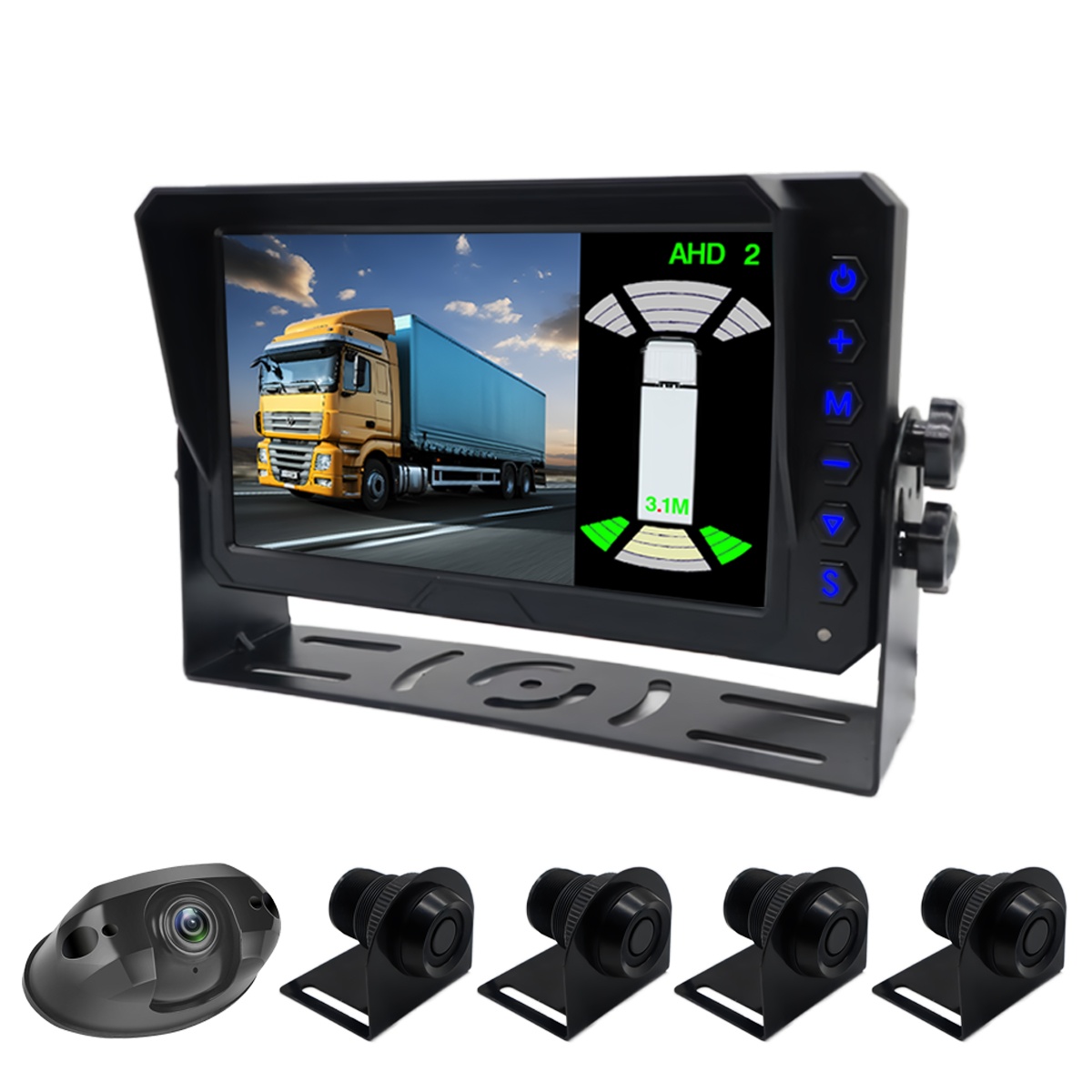

7 Inch Parking Radar Reversing System

Carleader 7 inch Parking Radar Reversing Monitoring System is a premium 7-inch AHD parking radar and reverse camera system, includes a AHD rear view camera, four parking radar sensors and a 7 inch high definition AHD monitor. Designed to enhance vehicle safety and convenience. Featuring a sleek digital display and advanced detection technology, this system ensures precise parking assistance and clear visibility in all conditions.

Main Features:

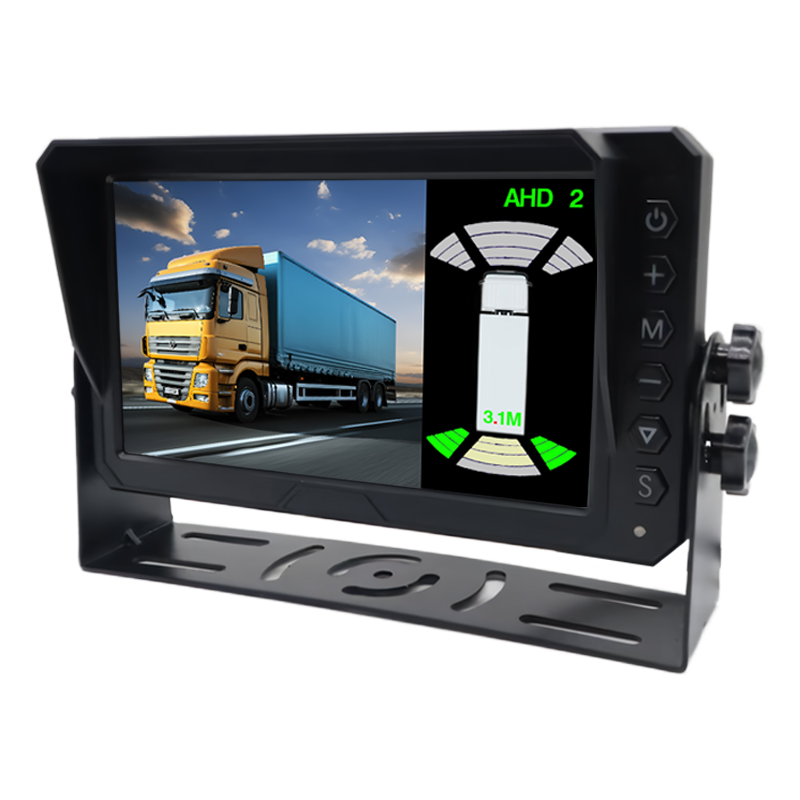

• High-Definition Display: Monitor equipped with a 7-inch digital panel (16:9 aspect ratio) and a sharp resolution of 1024x600 pixels, delivering crisp visuals for effortless navigation.

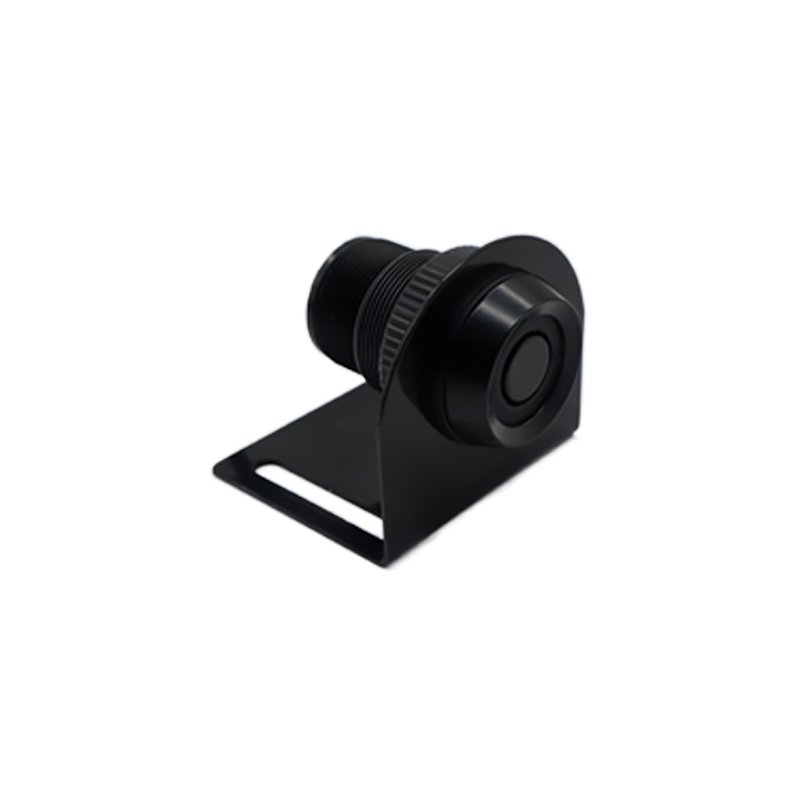

• Multi-Sensor Detection: Integrates 4 radar sensors with a detection range of 0-3 meters, paired with one 1080P rear camera input for comprehensive obstacle monitoring.
• Customizable Settings: Adjust brightness, contrast, chroma, and tint for optimal image clarity. Choose between mirrored or non-mirrored display modes.
• Intelligent Guidelines: Offers 14 pre-set vehicle guideline modes and adjustable guideline positioning to suit various driving scenarios.
• Support 1-3 AHD reverse cameras(Standard: One camera)
• 4-pin aviation cord (extension cord optional)

Parameter:

7'' digital Innolux panel with 16:9 image

Resolution: 1024xRGBx600

All buttons with backlight.

4 radar detection +AV2 1080P rear camera input

Brightness/Constrast/Chroma/Tint adjustable

Languages: English/Chinese

Mirror image & non-mirrored image optional

Guideline mode have 14 types vehicle modes

Guideline position optional

Signal: Front,Rear,ALL,OFF

Volume level optional.Selectable ON/OFF for  2AV,3AV,4AV

Selectable trigger delay time for 2AV,3AV,4AV (default 3s)

Selectable sharpness for 2AV,3AV,4AV

Side range optional

Radar Detection Range:0-3M

Alarm maximum optional

Sensitive mode ON/OFF

Buzzer ON/OFF

Stop value optional

Display mode FULL/DOWN

Support reset
